Semi-Trailer
Details
Configure
| Top part | |||||
| Serial Number | Function Partition | Project Name | Unit | Quantity | Remarks |
| 1. |
Car body size (length, width and height) 12400*2500*3500mm |
Body frame | Group | 1 | square tube |
| 2. | Car body (2 escape windows, 4 vents and tool box are reserved at the top) | Sleeve | 1 | Stainless Steel Skin | |
| 3. | U-screw | Sleeve | 1 | Securing frame | |
| 4. | Manual folding door | Piece | 1 | Upper with window | |
| 5. | Body transparent poetic glass window (5 ㎜ F green transparent safety poetic glass transmittance 75%) | Sleeve | 1 | The upper half of the glass window on both sides can be pushed and pulled | |
| 6. |
Paint Color number RAL 1002 sand yellow |
Sleeve | 1 | Car body appearance paint welding anti-oxidation spraying | |
| 7. |

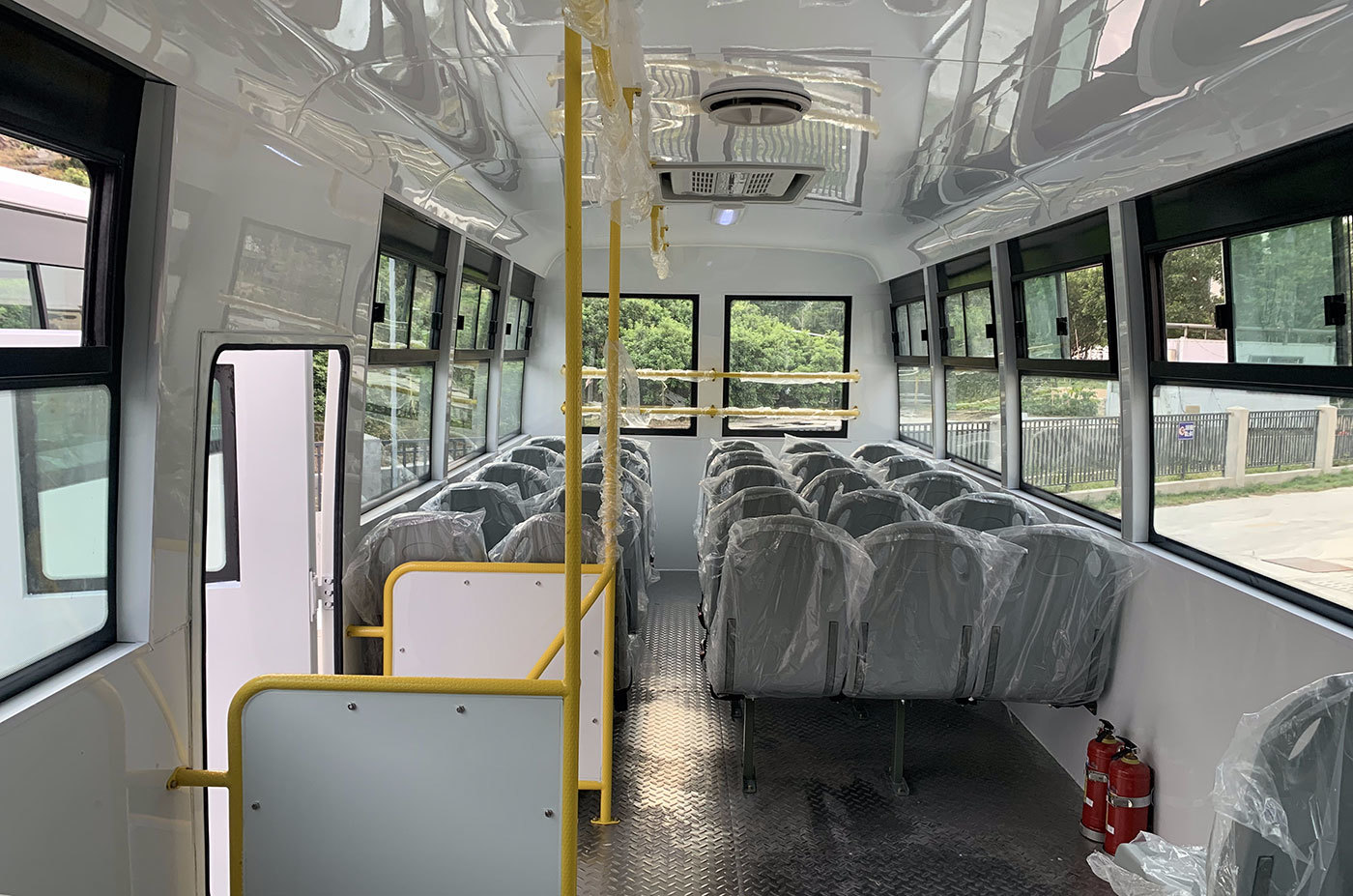

Inside the car |
Interior trim panel | carbon crystal plate | ||
| 8. | Floor | Group | 1 | 3mm thick stainless steel diamond plate | |
| 9. | Plastic bus seat | Put | 76 | With safety belt | |
| 10. | Stainless steel handrails and guardrails, etc. | Sleeve | 1 | Handrails on top and around | |
| 11. |
Other Accessories |
Light fixtures | Sleeve | 1 | Position lights, flash lights, interior lighting, etc. |
| 12. | Red and yellow reflector | Sleeve | 1 | ||
| 13. | Mudguard | Sleeve | 1 | ||
| 14. | Power line | Sleeve | 1 | ||
| 15. | Fire extinguisher and bracket | Piece | 2 | Dry powder fire extinguisher | |
| 16. | Cost of labor, modification and consumables | vehicle | 1 | ||
| Frame part | |||||
| 17. | Project Name | Specifications | Unit | Quantity | |
| 18. | Axle | BPW original 12 tons with ABS hole | Root | 1 | |
| 19. | pneumatic control valve | WABCO Brand | One | 1 | |
| 20. | Suspension | Jiangling single bridge air suspension | Sleeve | 1 | |
| 21. | Tires | 315/80R22.5 | Sleeve | 4 | |
| 22. | Steel ring | 9.0-22.5 | Sleeve | 4 | |
| 23. | ABS | WABCO Brand | One | 1 | |
| 24. | Traction pin | 50# assembly | One | 1 | |
| 25. | Gas chamber | full double | One | 2 | |
| 26. | Lifting legs | JOST A300 Linkage | Pay | 1 | |
| 27. | Paint |
Zinc-rich primer polyurethane topcoat Color: Black |
|||
| 28. | Steel structure | Girder specification: 450/8/5/8mm, 12# channel steel for side beam, 5 bends for cross beam and 3 small cushion beams. No panel, toolbox, fender, guardrail. | |||
