Ford V362 Transport ambulance
Classify:
Summary:
Color: White/Red/Blue
Ford V362 Transport ambulance
Details
V362 Transport Ambulance
Color:
White/Red/Blue
Emission Standard:
GB18352.6-2016 China VI
| Vehicle performance | ||
| Form | In-line, four-cylinder, supercharged and intercooled, in-cylinder direct injection | |
| Displacement (L) | 1.997 | |
| Maximum power (kw) | 162 | |
| Maximum torque (N · M/rpm) | 300/2000-3500 | |
| Liter power (Kw/L) | 81.1 | |
| Oil standard | Guo Ⅵ 93 (Jing 92) Gasoline | |
| Fuel tank volume (L) | 80 | |
| Emission standards | Country VI | |
| Transmission | 9-speed automatic transmission | |
| Dynamic | Maximum safe speed (km/h) | 170 |
| Economy | Fuel consumption per 100 kilometers (90 km/h constant speed) (this fuel consumption is the fuel consumption test result of the vehicle with full load under standard tire pressure, temperature of 20 degrees Celsius, and standard atmospheric pressure) | |
| 11 | ||
| Minimum turning radius (m) | 5.8 | |
| Braking system | Front plate Rear plate | |
| Suspension system | Front suspension MacPherson independent suspension, rear suspension leaf spring non-independent suspension | |
| Driving mode | Front Precursor | |
| Steering system | Hydraulic power steering | S |
| B: Retrofit configuration | |||
| Serial Number | Name | Performance Specifications | Quantity |
| Sticking red color bars and first aid signs on the waist of the body, and designing the appearance according to the user's requirements | 1 set | ||
| 1 | Appearance | ||
| Dark solar film on transparent glass of medical cabin window | 1 set | ||
| Cab installation alarm, lamp control button | 1 set | ||
| Warning light alarm device | |||
| 2 | |||
| ★A split embedded LED warning light assembly is installed on the front of the roof. The lampshade is made of high light transmission materials, which is energy-saving and environmentally friendly, with high transparency, strong fog penetration ability, strong impact resistance, and no fading. (The physical photo of this part shall be provided in the bidding documents, otherwise it will be regarded as negative deviation) | |||
| 1 set | |||
| Install blue flashing lights on the left and right sides of the body | 4 only | ||
| Install white off-site lights on the left and right sides of the body | 2 only | ||
| 100W Siren | 1 set | ||
| The external loudspeaker is built into the siren. | 1 set | ||
| The alarm control handle is installed in the cab. | 1 set | ||
| An integral partition assembly is arranged between the cab and the medical cabin, which divides the whole carriage into two independent front and rear areas. The partition wall is provided with an aluminum alloy observation window, and the window is equipped with push-pull transparent glass for easy observation. | |||
| Medical cabin configuration | |||
| 1 set | |||
| 3 | |||
| The walls, doors, roof and all interiors on both sides of the medical cabin are made of polymer environmental protection materials. | |||
| 1 set | |||
| Medical special floor using acid, alkali, fireproof, non-slip, anti-static floor. | 1 set | ||
| A doctor's seat with safety belt is installed at the front of the medical cabin, and a drawer-type medicine cabinet is installed on the left side of the seat. | |||
| 1 set | |||
| An oxygen cabinet is installed at the front of the left side of the medical cabin, with two 10-liter oxygen cylinders built in. The oxygen cylinders are equipped with one pressure reducing valve, one humidification bottle, one oxygen terminal, one ventilator terminal, and oxygen pipeline and other central oxygen supply systems. The instrument meets national standards to ensure safe use. | |||
| 1 set | |||
| A set of multifunctional medical instrument cabinets are installed on the left side of the medical cabin, and the doctor operating platform is reserved on the table to facilitate the operation of medical personnel. | |||
| Group 1 | |||
| A single front seat is installed on the right side of the medical cabin, and a long-row seat cabinet is installed behind the seat, with safety armrests, safety belts, backrests, etc., and a storage cabinet is installed under the seat. | |||
| 1 set | |||
| The medical cabin is covered around to prevent collision. | 1 set | ||
| The top of the medical cabin is equipped with safety handrail, which is sprayed with yellow plastic. | 1 set | ||
| A rail-type infusion hanger is installed on the top of the medical cabin. | 2 sets | ||
| Folding stretcher. | 1 set | ||
| Automatic loading stretcher with stainless steel track and baffle. | 1 set | ||
| The medical cabin is equipped with 2KG fire extinguisher and fixed bracket. | 1 set | ||
| The medical cabin is equipped with a pedal-type medical dirt bucket. | 1 | ||
| Front and rear intercom system (with megaphone). | 1 set | ||
| All medical cabinet systems in the medical cabin are made of new environmentally friendly materials, and all cabinet doors are equipped with safety locking devices to prevent items from falling during vehicle travel. | 1 set | ||
| 1000W pure sine wave vehicle-mounted intelligent inverter power supply system provides 24-hour uninterrupted power supply. | 1 set | ||
| central power distribution system | Maintenance-free battery (12V/60A) | 1 set | |
| 4 | AC/DC dual-purpose socket (220V/3 group, 12V/2 group) is installed in the medical cabin. | 1 set | |
| The integrated control panel assembly is installed on the left side of the medical cabin, including panel, inverter switch, lighting switch, disinfection lamp switch, etc. | 1 set | ||
| ★The circuit control system adopts redundant design to control the timing and linkage of the electrical appliances in the ambulance to ensure the safe and stable operation of the vehicle circuit system and on-board electrical equipment, and provide relevant certification materials. | |||
| 1 set | |||
| ★High-safety flame-retardant tinned copper wire is used for some modified wiring harnesses, and samples are provided on site. | 1 set | ||
| Cab, medical cabin installation of the original independent air conditioning. | 1 set | ||
| Air conditioning and lighting system | |||
| 5 | |||
| Installation of exhaust system, with suction, ventilation dual function. | 1 set | ||
| The medical cabin is equipped with effective fixed disinfection device, such as ultraviolet disinfection lamp, power ≥ 18W, with timing disinfection function; installation and use conform to the "disinfection technical specification". | |||
| 1 set | |||
| LED lighting is installed in the medical cabin to fully meet the work needs of medical staff. | 4 only | ||
| Installation of LED rear lighting spotlights in medical cabin | 1 only | ||
Electronic control unit of 2. negative pressure device:
1. The fan uses a brushless high-speed turbine fan with a voltage of DC12V and a current of 12A, which has a stepless adjustment function;
2. The display device of the negative pressure device uses the most advanced 4.3 inch touch LCD screen with touch control function. It is convenient to set and calibrate the parameters of the negative pressure device.
3. The differential pressure sensor adopts a high-precision sensor with RS485 communication mode. The collected data is transmitted to the touch screen for display through RS485 mode. The negative pressure value transmitted by digital transmission does not have any deviation, so the accuracy is high.
4. The main control board of the negative pressure device adopts ARM32 high-speed microprocessor, which can collect and control the negative pressure value in real time. Since the fan adopts DC brushless belt speed regulation function, the main control board will dynamically adjust the negative pressure value set by the user (I .e. make the negative pressure value automatically stabilize in the set range), and can alarm according to the high and low negative pressure values set by the user.
3. main technical parameters:
1. The fan uses a brushless high-speed turbine fan with a voltage of DC12V and a current of 15A(2400 rpm);
2. The filtration rate of 0.3 μm particle size aerosol by high efficiency air filter reaches 99.999%
3. Air change rate: 900 m3 / h
4, negative pressure -20 ~-60Pa ,(due to the volume of the ambulance ward and sealing and demand settings vary);
4. new monitoring technology
1. The negative pressure device has the function of calculating the service life of the filter screen, and the accuracy can reach any day within 10 years (that is, the user specifies the initial use time and any day within 10 years as the end of life). The negative pressure device with this function can better avoid the risk of virus leakage and sensing caused by the failure of the filter to be replaced in time.
2. The negative pressure device also has the actual detection function of the disinfection lamp. If the disinfection lamp is damaged, it can remind the user to replace it in time. If the disinfection lamp is damaged, the bacteria will be adsorbed on the surface of the filter, and it is easy to cause infection if it is not operated properly.
5. product shape:
1. Overall dimensions: 651*505*320;
Introduction of New Technology of Negative Pressure Purification and Disinfection System for Ambulance

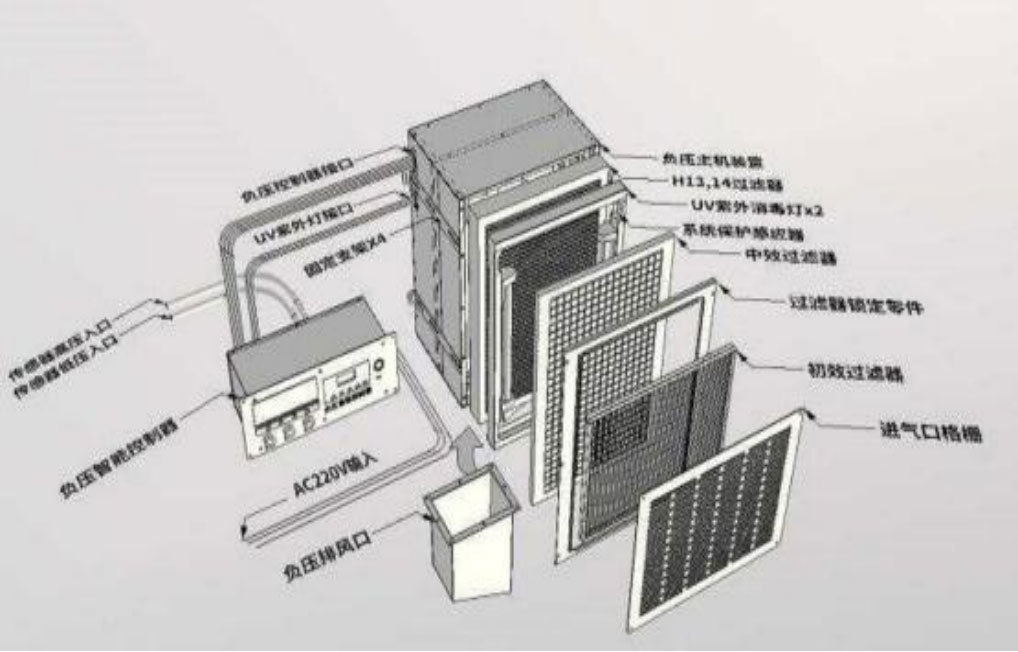

structure of 1. negative pressure device:
Our company's negative pressure device adopts the most advanced and costly structure in the world, and the main features are as follows;
1. From outside to inside, the negative pressure device is followed by air intake grille, primary filter, filter locking parts, medium filter, disinfection lamp, H13,14 high efficiency filter and negative pressure centrifugal fan. The specially designed locking mechanism of this compact structure and filter screen can ensure that there is no leakage around the pressing. There is also the disinfection lamp is installed in the middle of the medium effect and high efficiency filter, which is more conducive to disinfection. Because the source of infection will directly pass through the primary effect and the intermediate effect filter screen and be adsorbed on the surface of the high efficiency filter, the disinfection lamp installed in the middle of the intermediate effect and the high efficiency filter has the best effect, but the cost is relatively high (80% of the negative pressure device disinfection lamps on the market are installed outside the primary effect);
2. The disinfection lamp of the negative pressure device adopts medical-grade quartz belt ozone disinfection lamp, and the ozone emitted can disinfect the dead corners in the device.
2. negative pressure device:
5. The fan uses a brushless high-speed turbine fan with a voltage of DC12V and a current of 15A, which has a stepless adjustment function;
6. The display device of the negative pressure device uses the most advanced 4.3 inch touch LCD screen with touch control function. It is convenient to set and calibrate the parameters of the negative pressure device.
7. The differential pressure sensor adopts a high-precision sensor with RS485 communication mode. The collected data is transmitted to the touch screen for display through RS485 mode. The negative pressure value transmitted by digital transmission does not have any deviation, so the accuracy is high.
8. The main control board of the negative pressure device adopts ARM32 high-speed microprocessor, which can collect and control the negative pressure value in real time. Since the fan adopts DC brushless belt speed regulation function, the main control board will dynamically adjust the negative pressure value set by the user (I .e. make the negative pressure value automatically stabilize in the set range), and can give an alarm according to the high and low negative pressure values set by the user.
3. main technical parameters:
1. The fan uses a brushless high-speed turbine fan with a voltage of DC12V and a current of 15A(2400 rpm);
2. The filtration rate of 0.3 μm particle size aerosol by high efficiency air filter reaches 99.999%
3. Air change rate: 900 m3 / h
4, negative pressure -20 ~-60Pa ,(due to the volume of the ambulance ward and sealing and demand settings vary);
4. new monitoring technology
1. The negative pressure device has the function of calculating the service life of the filter screen, and the accuracy can reach any day within 10 years (that is, the user specifies the initial use time and any day within 10 years as the end of life). The negative pressure device with this function can better avoid the risk of virus leakage and sensing caused by the failure of the filter to be replaced in time.
2. The negative pressure device also has the actual detection function of the disinfection lamp. If the disinfection lamp is damaged, it can remind the user to replace it in time. If the disinfection lamp is damaged, the bacteria will be adsorbed on the surface of the filter, and it is easy to cause infection if it is not operated properly.

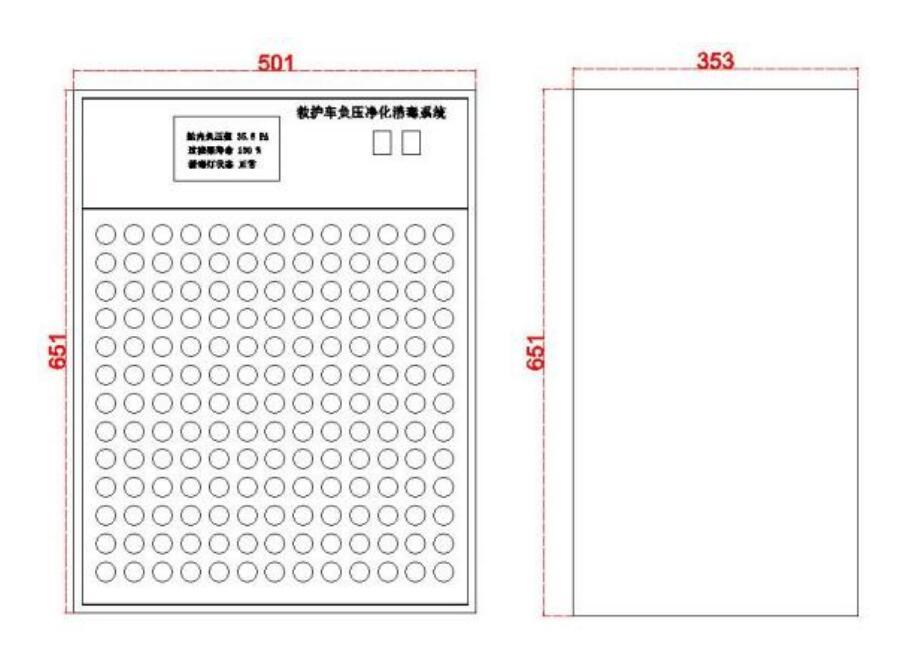

5. product shape:
1. Overall dimensions: 651*501*353;

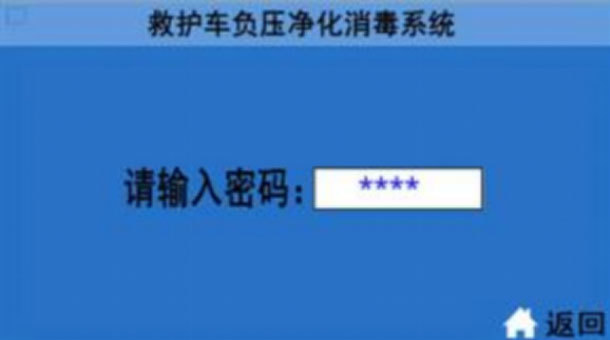

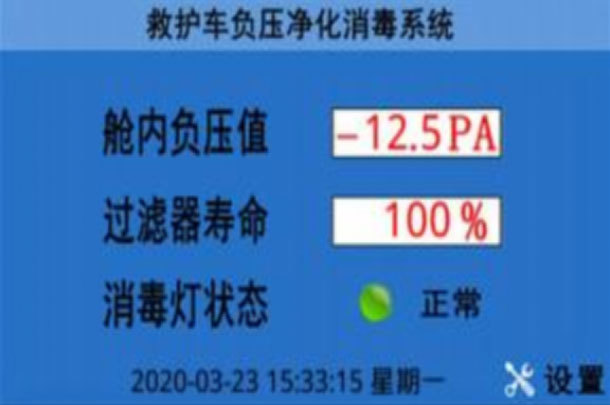

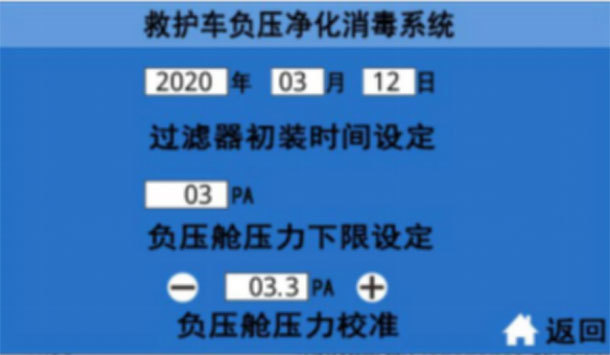

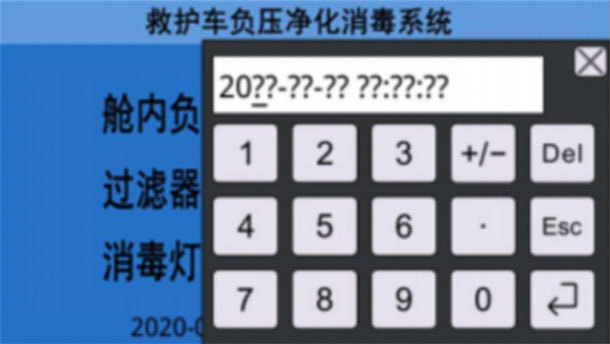

6. touch screen operation interface:

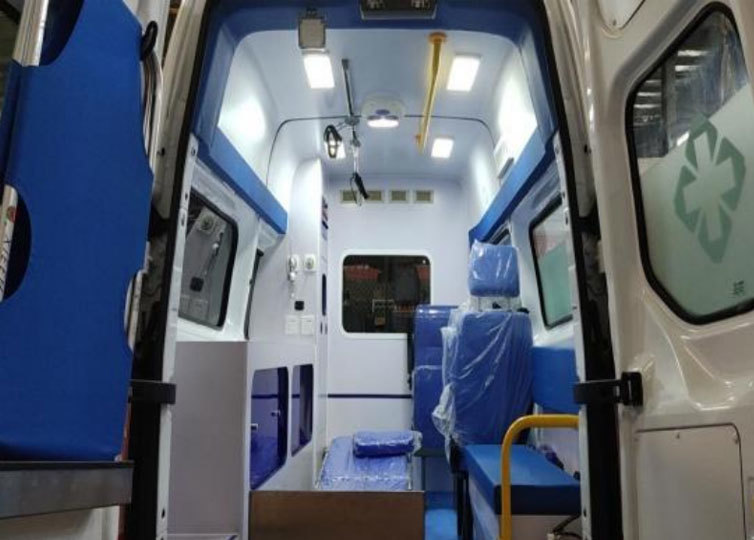

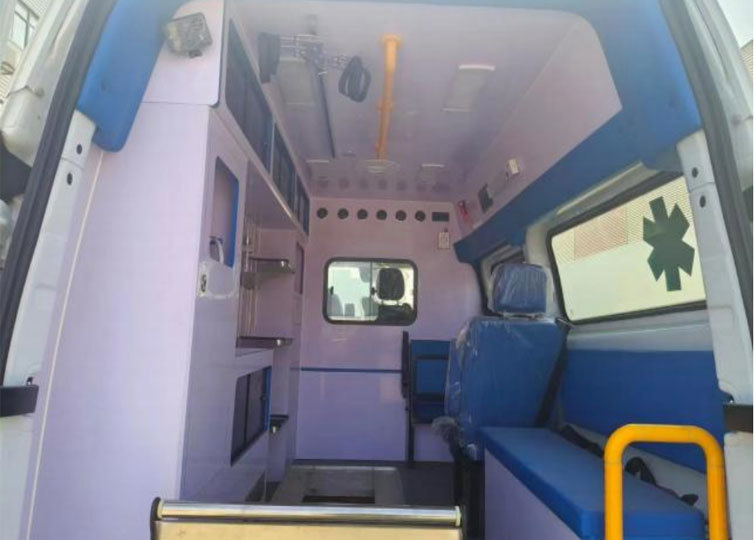

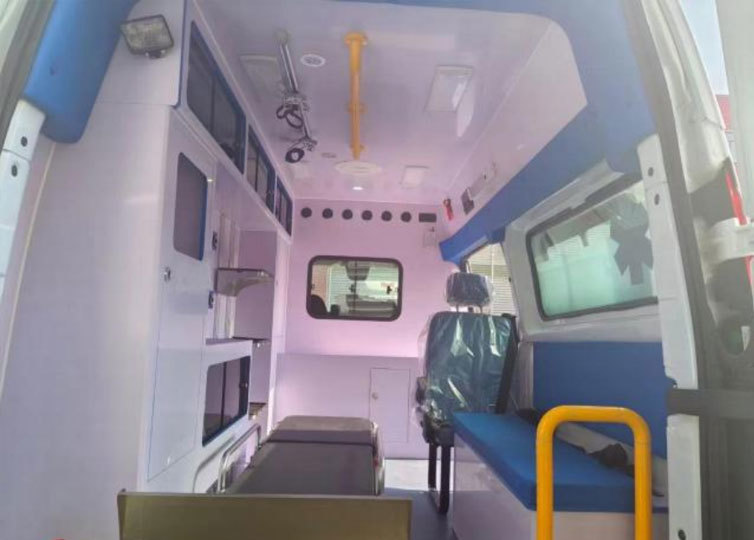

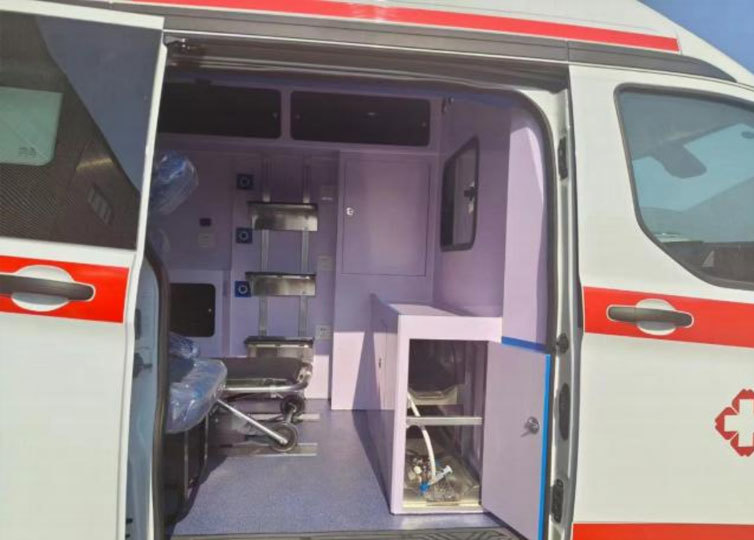

Reference pictures (pictures for reference, specific to the user's actual order shall prevail)
